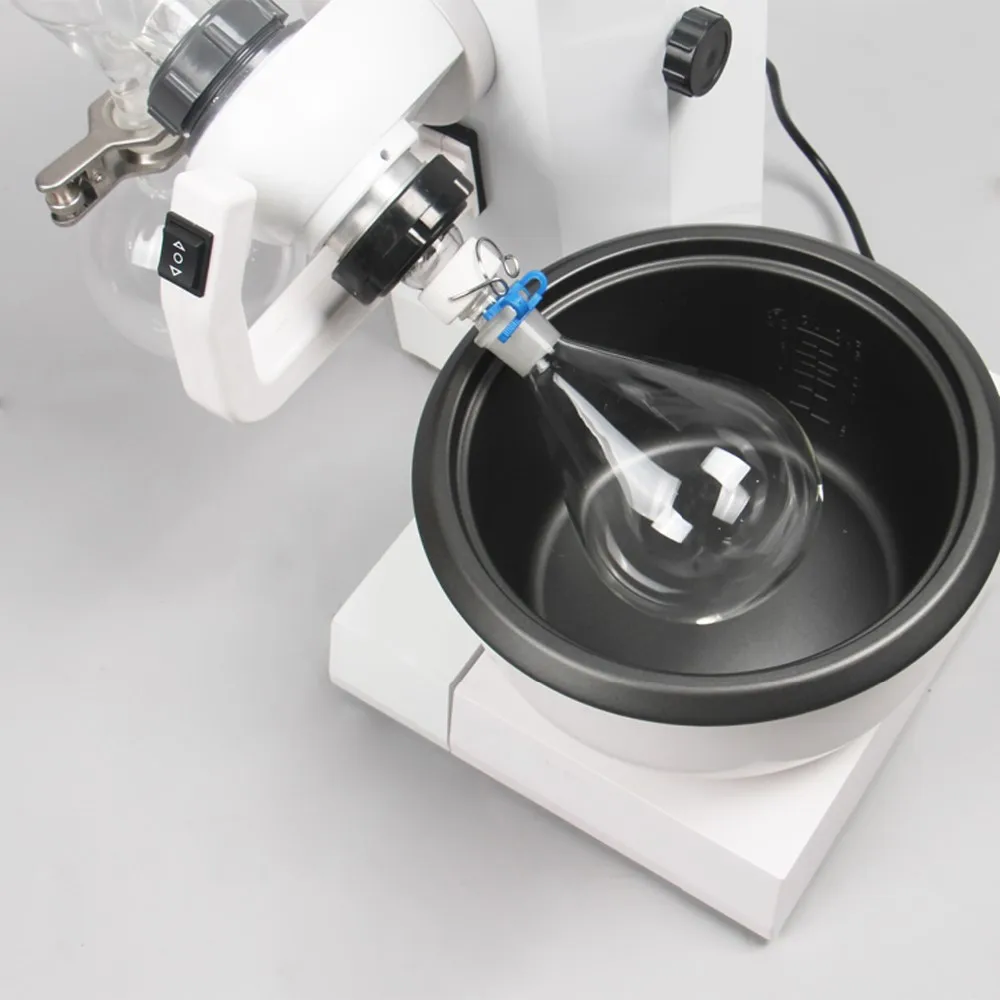

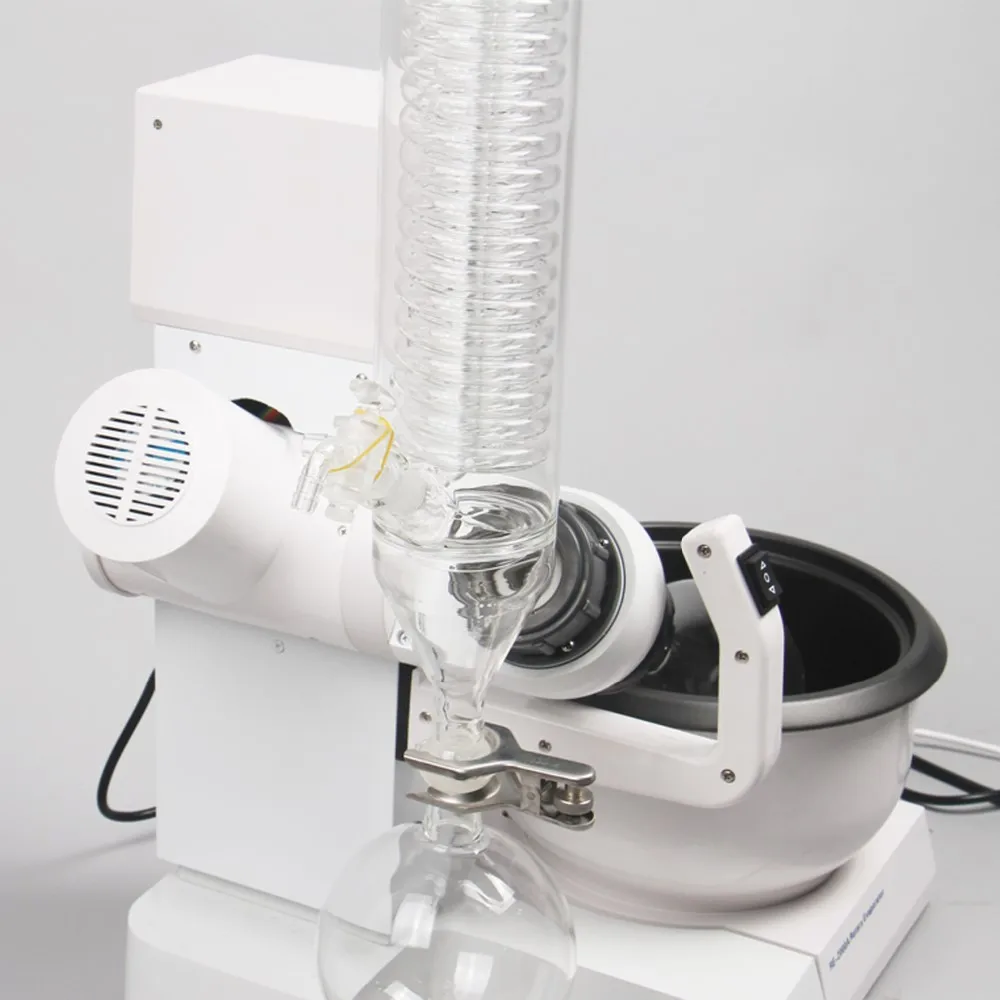

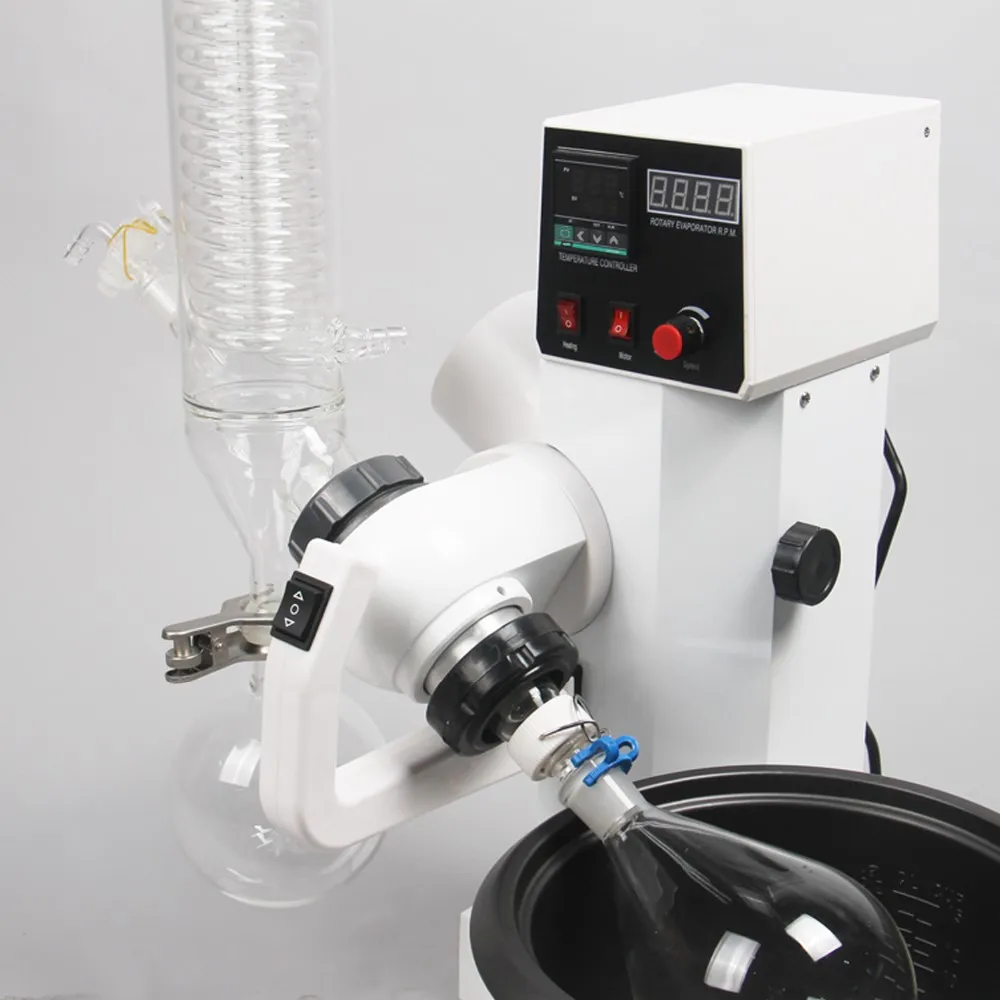

Mini 2l rotary evaporator flask for pyrolysis

Keterangan :

Rotary evaporator adalah alat yang digunakan di laboratorium kimia untuk menghilangkan pelarut secara efisien dan lembut dari sampel dengan penguapan. Rotary evaporation paling sering dan mudah diterapkan untuk memisahkan pelarut "pendidihan rendah" seperti n-heksana atau etil asetat dari senyawa yang padat pada suhu dan tekanan kamar. Namun, aplikasi yang hati-hati juga memungkinkan penghapusan pelarut dari sampel yang mengandung senyawa cair jika ada penguapan minimal (perilaku azeotropik), dan perbedaan yang cukup dalam titik didih pada suhu yang dipilih dan tekanan yang dikurangi.

Model paling hemat biaya dengan lift motor untuk semua aplikasi standar: stracture sederhana, mudah dirawat, dengan opsi kondensor berbeda, hingga labu penguapan hingga 1L.

Quick Details

Power Source:Electric

Process:Vacuum Distillation

Voltage:220V/110V

Power(W):1500w

Dimension(L*W*H):600*620*480mm

Weight:40kg

Certification:CE ISO

After-sales Service Provided:Overseas third-party support available

Model:Mini 2l rotary evaporator flask for pyrolysis

Evaporation Flask:pear-shared 1L

Receiving Flask:round-bottom 1L

Bath Temp Range:+5℃ to 180℃

Material:Stainless Steel

Sealing:PTFE +Viton

Rotation Speed:10 to 150 rpm

Evaporation Speed:1200ml/hr (water)

Future:laboratory rotary evaporator

Technical Futures

1.High quality borosilicate glass 3.3 with excellent physical and chemical properties.

2.Comatible with evaporating flasks from 0.25L to 2L.

3.4 options of glassware assembly: vertical coil, diagonal coil, dry ice and vertical coil with reflux.

4.Easy to operate motor lift (150mm range )

5. Large 1200cm2 cooling surface.

Technical dates

Model	RE-502
Evaporation  Flask	pear-shaped , 1L as defult, 24/40 or 24/29 joint
Receiving Flask	rond-bottm, 1L, 35/20 ball joint at the top
Vacuum Seal	PTFE+viton
Rotation Speed	10 to 180 rpm
Ultimate Vacuum	20mbar or less
Safety Features	fuse and ver-temperature protection
Lift Function	electrical motor lift
Stand base	heavy-duty SUS304 plate
Motor	induction motor
Bath Temp Range	+5℃ to 180℃
Accuracy	+/-1℃
Display	digtial display for speed, set/ actual temperature
Bath size	240mm diameterx 130mm height, 5.8liter
Bath material	SUS304
Total weight	40kg
Heating power	1500w
Voltage	230v or 115v

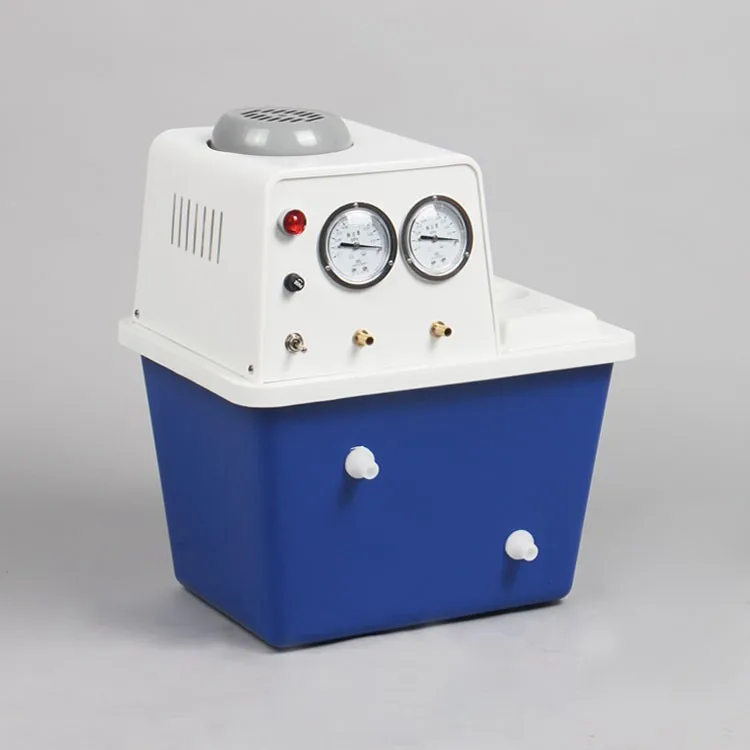

Vacuum Pump

1.Dramatically reduced water consumption compared to tap water.

2.Assured constant water circulation which is independent from tap water contingencies like water availability or low pressure

3.Oil-free and maintemance-free design, absolute clean vacuum.

4.Chemical corrosion-resistant ABS stracture for long time service.

5.Two independent vacuum channels to support two vacuum systems simultaneously

6.Small footprint design, ideal for desktop rotary evaporator operation.

Model	WVP-02
Utimate Vacuum	20mbar
Gas-taking speed	10L/min x 2 ports
Water tank volume	15L
Water flow rate	60L/min
Pressure head	8m
Power	180W
Weight	15kg
Dimension	400x280x420mm
