Mesin Evaporator

Harga : USD. 1,000.00 / Set.

Keterangan :

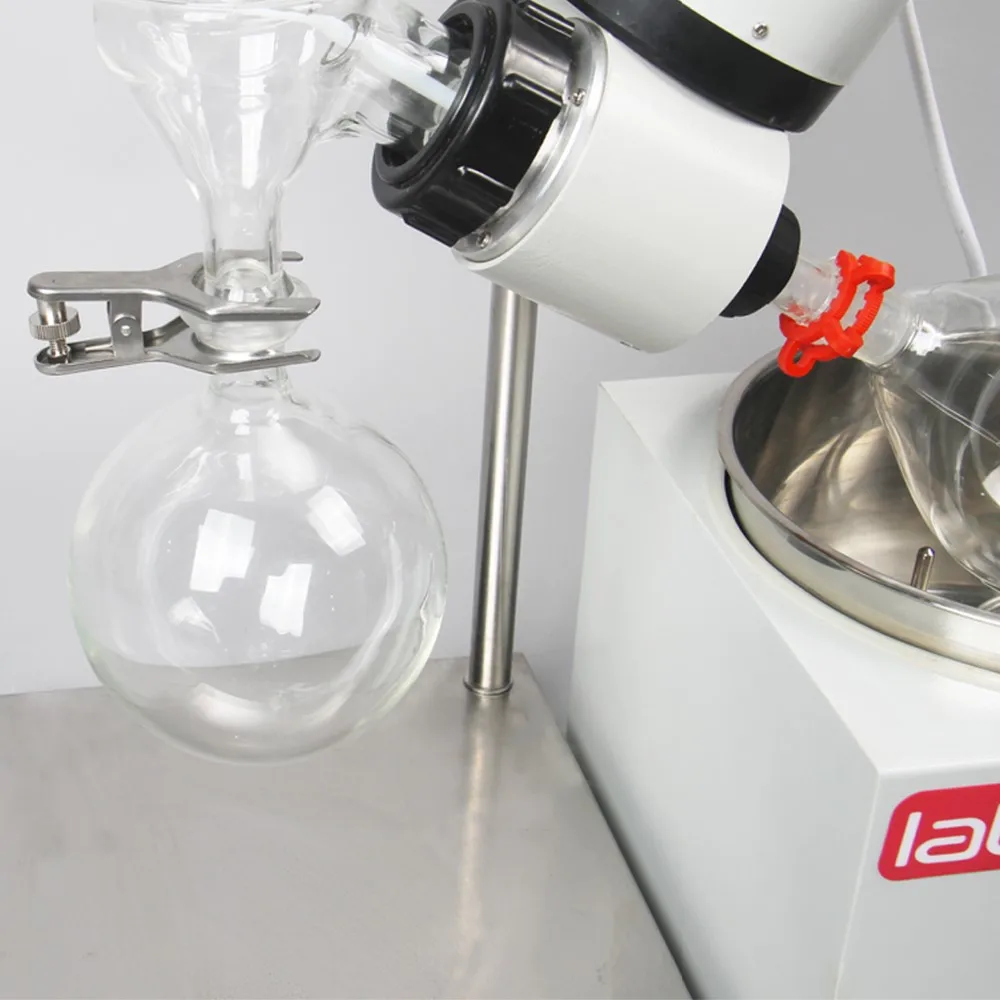

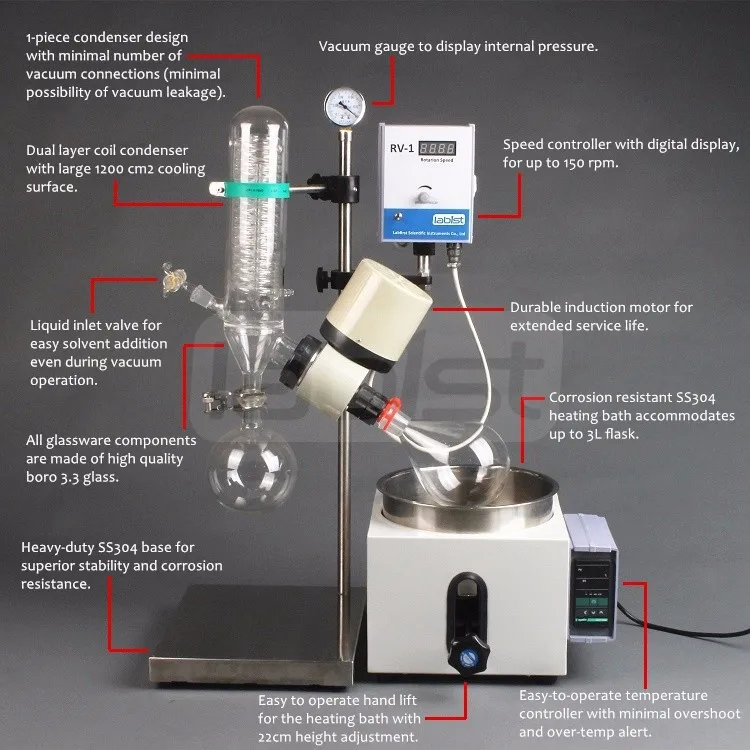

Energy Saving small vertical condenser used rotary evaporators
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

The most cost effective model with hand lift for all standard applications: simple stracture, easy to maintain, with different condenser options,for up to 1L evaporation flask.

Quick Details

Power Source:Electric

Process:Vacuum Distillation

Voltage:220V/110V

Power(W):1500w

Dimension(L*W*H):600*620*480mm

Weight:40kg

Certification:CE ISO

After-sales Service Provided:Overseas third-party support available

Model:Mini 2l rotary evaporator flask for pyrolysis

Evaporation Flask:pear-shared 1L

Receiving Flask:round-bottom 1L

Bath Temp Range:+5℃ to 180℃

Material:Stainless Steel

Sealing:PTFE +Viton

Rotation Speed:10 to 150 rpm

Evaporation Speed:1200ml/hr (water)

Future:laboratory rotary evaporator

1.High quality borosilicate glass 3.3 with excellent physical and chemical properties.

2.Comatible with evaporating flasks from 0.25L to 2L.

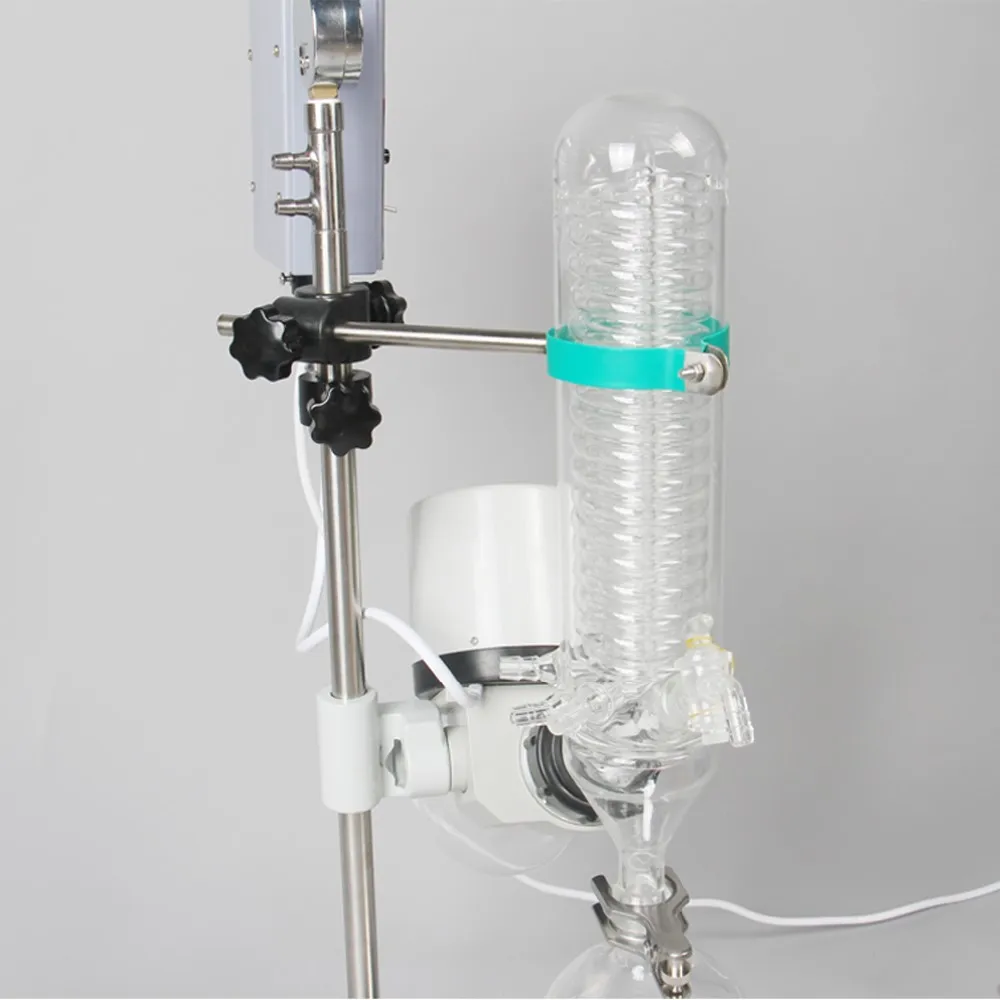

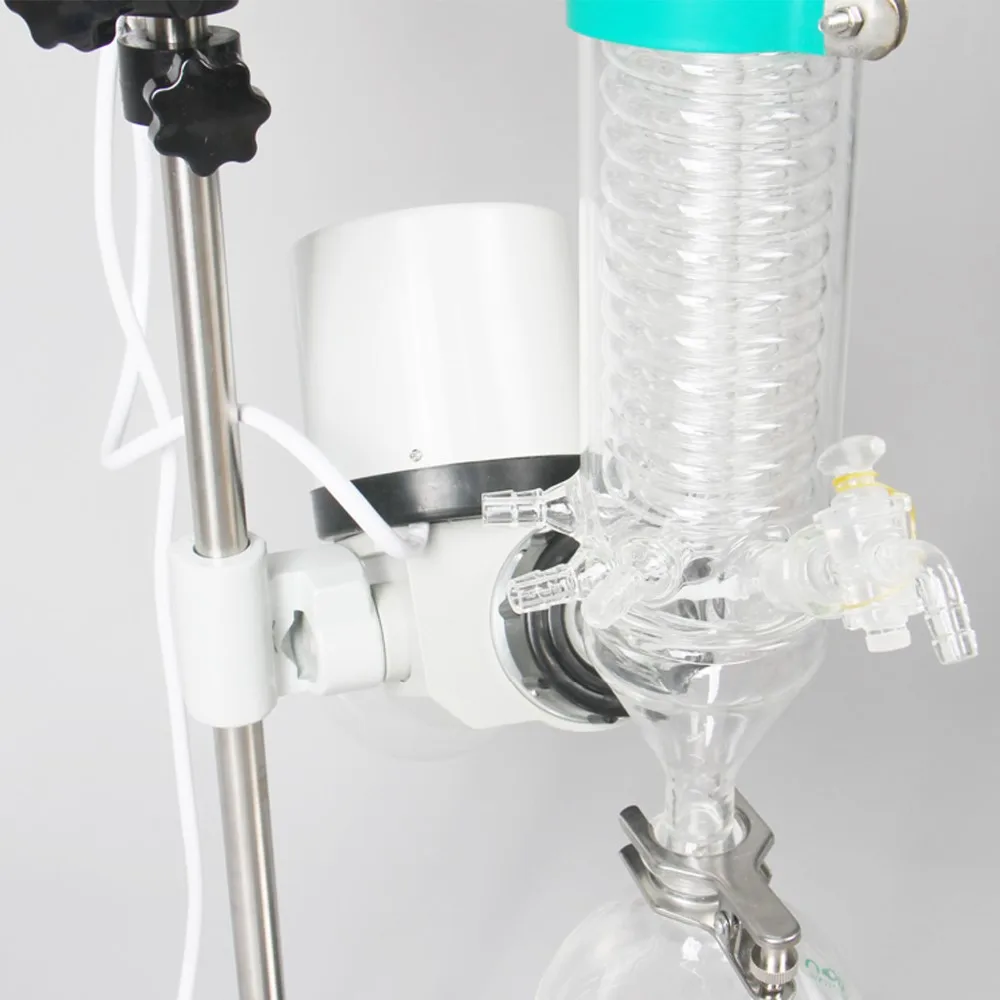

3.4 options of glassware assembly: vertical coil, diagonal coil, dry ice and vertical coil with reflux.

Technical data:

Model	RE-102
Evaporation  Flask	pear-shaped , 1L as defult, 24/40 or 24/29 joint
Receiving Flask	rond-bottm, 1L, 35/20 ball joint at the top
Vacuum Seal	PTFE+viton
Rotation Speed	1200ml/hr (water)
Ultimate Vacuum	20mbar or less
Safety Features	fuse and ver-temperature protection
Lift Function	scissor jack under heating bath, manual lift
Stand base	heavy-duty SUS304 plate
Motor	induction motor
Bath Temp Range	+5℃ to 180℃
Accuracy	+/-1℃
Display	digtial display for speed, set/ actual temperature
Bath size	240mm diameterx 130mm height, 5.8liter
Bath material	SUS304
Total weight	30kg
Heating power	1500w
Voltage	230v or 115v

Vacuum Pump

1.Dramatically reduced water consumption compared to tap water.

2.Assured constant water circulation which is independent from tap water contingencies like water availability or low pressure

3.Oil-free and maintemance-free design, absolute clean vacuum.

4.Chemical corrosion-resistant ABS stracture for long time service.

5.Two independent vacuum channels to support two vacuum systems simultaneously

6.Small footprint design, ideal for desktop rotary evaporator operation.

Model	WVP-02
Utimate Vacuum	20mbar
Gas-taking speed	10L/min x 2 ports
Water tank volume	15L
Water flow rate	60L/min
Pressure head	8m
Power	180W
Weight	15kg
Dimension	400x280x420mm
